Listings/EQ-0103
EQ-0103 · Material Handling · Available
Ultimation 18 in. x 5 ft. Roller Bed Belt Conveyor
$890
Garnerville, NY
- Manufacturer
- Ultimation
- Model
- Roller bed belt, 18 in. x 5 ft.
- Type
- Roller bed belt conveyor
- Location
- Garnerville, NY
Overview
An Ultimation roller bed belt conveyor, 18 inches wide and 5 feet long. Made in the USA. This one is used, it runs well, and it has its parts. It is in Garnerville, New York.

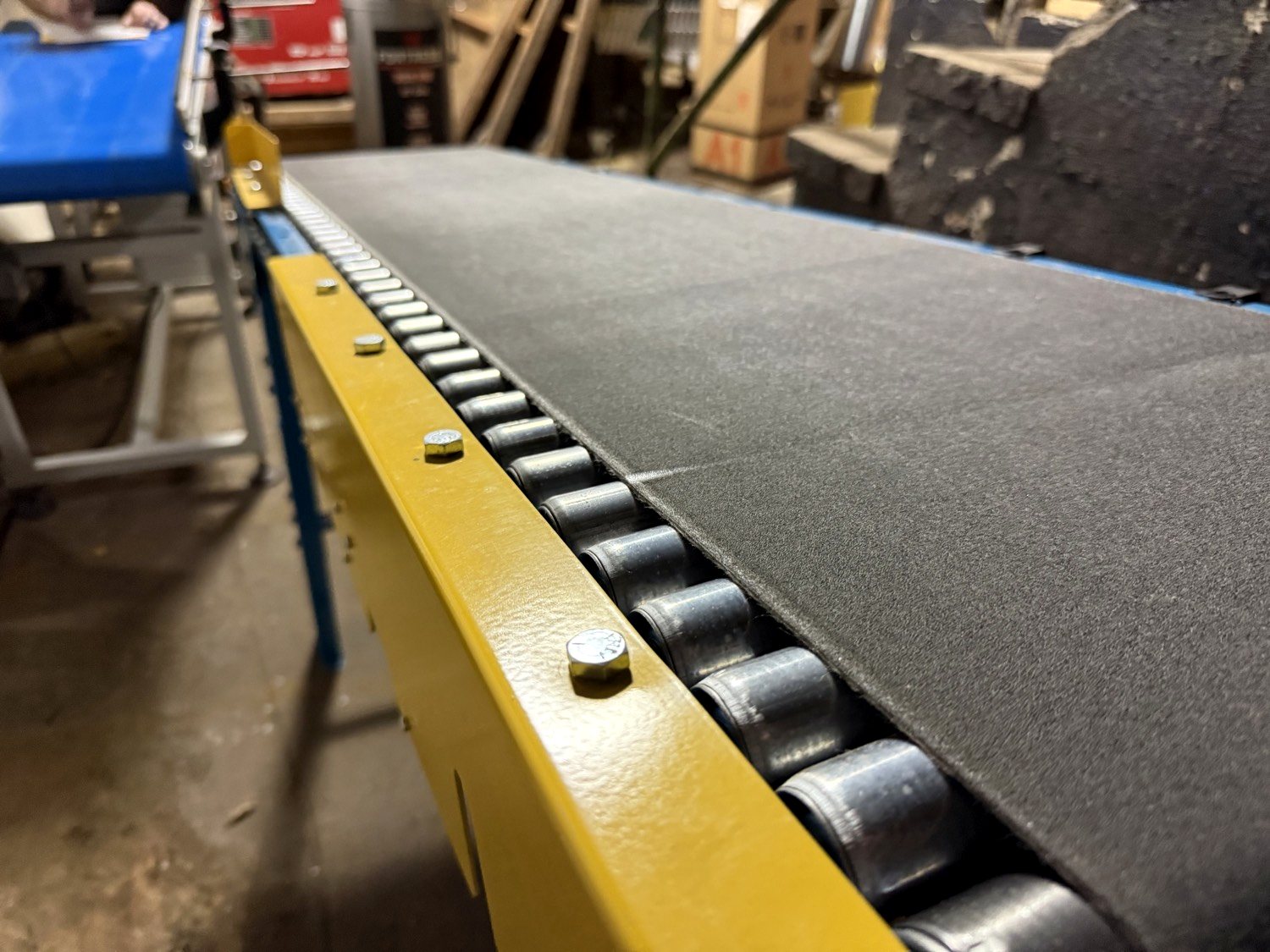

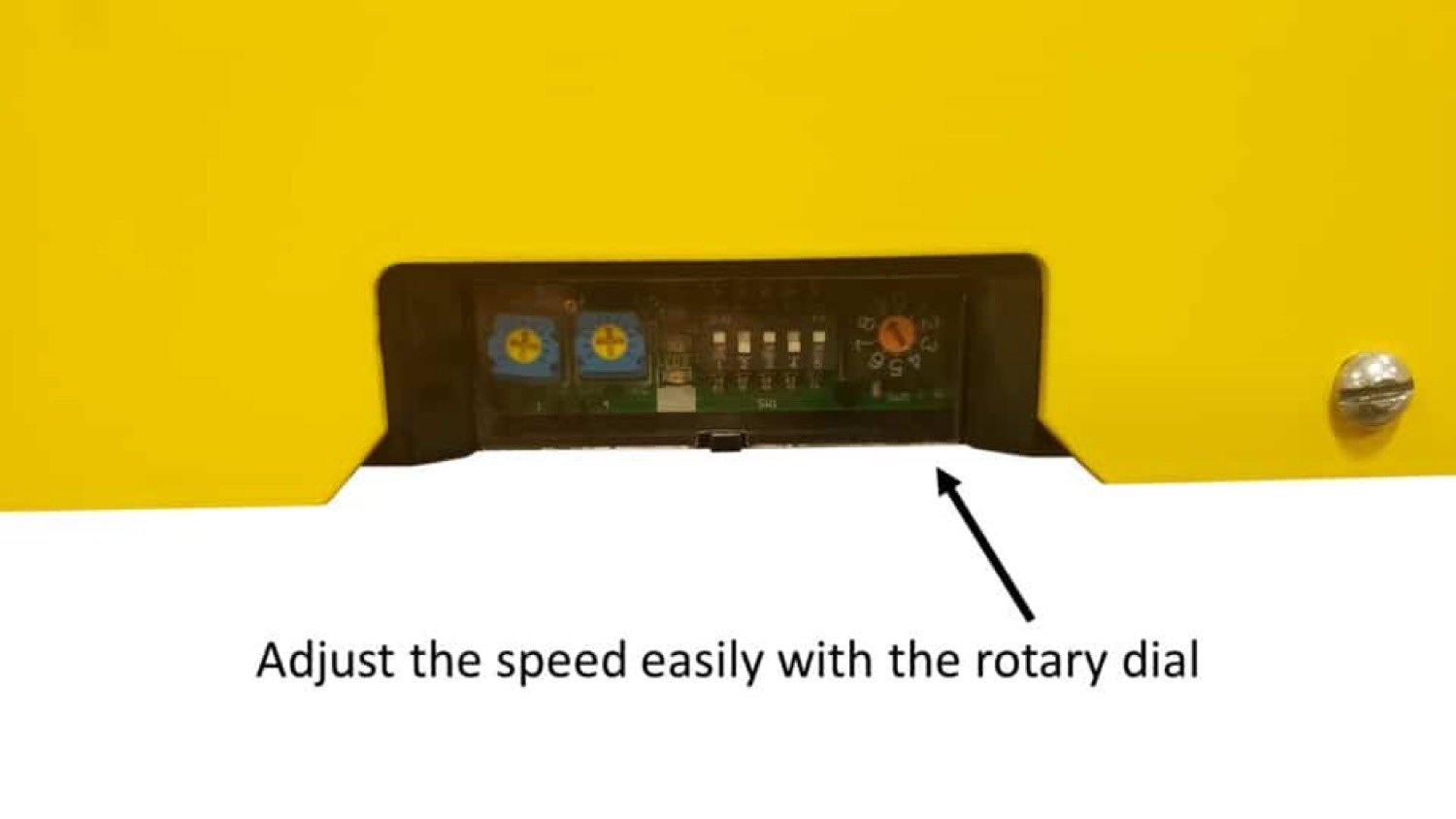

The belt rides on a row of rollers instead of a slider bed, so there is less friction when you are moving boxes and packages. It is not for loose bulk like sand. Speed is set with a dial on the side. The power supply is already mounted. You plug it into a regular 110 volt outlet.
Included with sale
- Conveyor section, 18 in. wide by 5 ft. long
- Adjustable leg supports
- Mounted power supply with 110 volt plug
- Itoh Denki 24 volt motorized roller and drive card, as equipped
Features
- Variable speed, about 7 to 55 feet per minute with no load

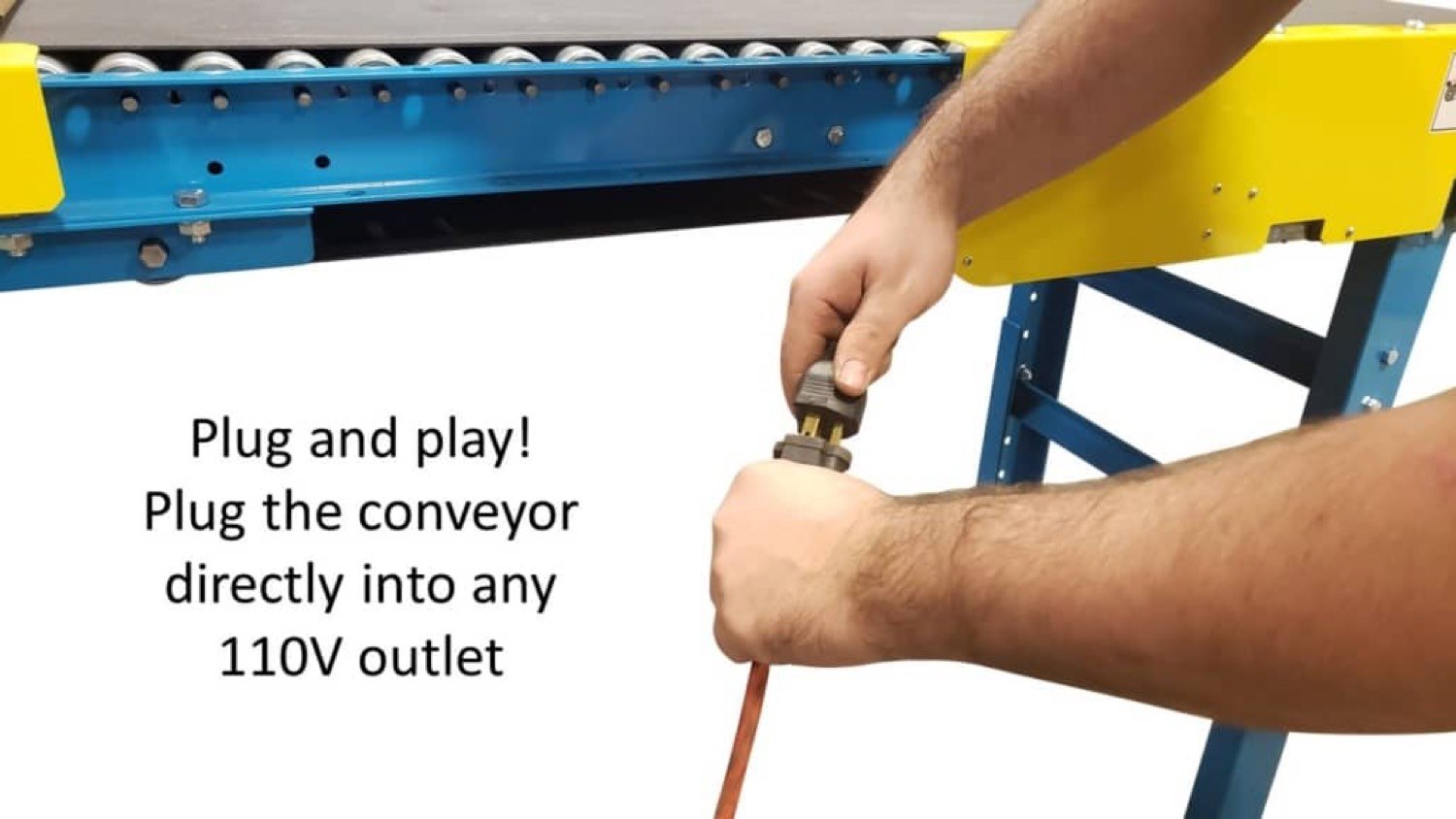

- Plugs into a 110 volt wall outlet
- Adjustable acceleration and deceleration

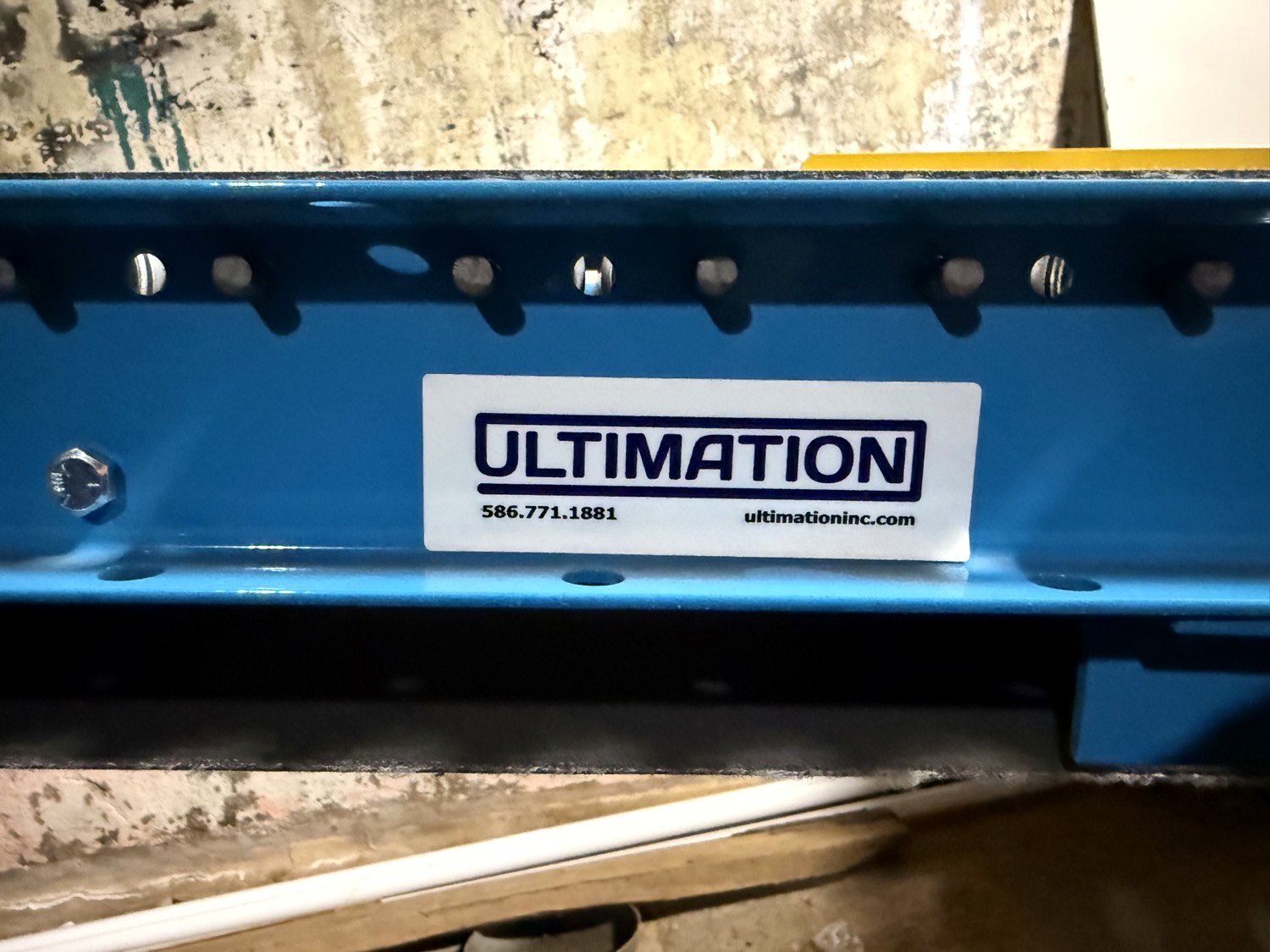

- Powder-coated Ultimation blue frame with yellow side rails
- Legs adjust from about 25-1/2 in. to 40-3/4 in. top of belt
Technical specifications
- Manufacturer
- Ultimation Industries
- Style
- Roller bed belt conveyor
- Overall width
- 18 in.
- Between frames
- 16 in.
- Belt width
- 14 in.
- Overall length
- 5 ft.
- Belt
- Trackmate 120 EMB, black
- Drive
- Itoh Denki PM486FE-17 Power Moller, 24V DC brushless, CB-016S7 card
- Pulleys
- 1.9 in. drive and tail, tail with take-up
- Frame
- Powder-coated steel, 2-1/2 in. tall x 1 in. flange x 12 ga.
- Live load
- 150 lb. total
- Speed
- About 7 to 55 ft/min, no load. About 50 ft/min at rated load.
- Power
- 110V plug-in supply to 24V DC roller
Condition
Used. It runs well and has all of its parts. Sold as-is. Come look at it running if you can.
Shipping / removal
Buyer takes care of pickup. The conveyor stays in Garnerville until you take it.
Contact
For photographs, video, inspection, or an offer, write sales@equipmentrelay.com. Reference EQ-0103.
