Listings/EQ-0101
EQ-0101 · Packaging · Available
2019 Alpha Pack LA-6000CS Automatic Shrink Wrap Machine w/ Conveyor & Tunnel
$8,900
Garnerville, NY
- Manufacturer
- Alpha Pack
- Model
- LA-6000CS / TLA-1245
- Year
- 2019
- Serial
- 190682
- Type
- Fully automatic shrink wrap / packaging machine
- Location
- Garnerville, NY
SEE IT RUN
The line running. Sound is off until you turn it on.
Overview
2019 Alpha Pack LA-6000CS fully automatic shrink wrap packaging system, configured with a TLA-1245 system and complete infeed and air-supply setup.
The machine includes a 6 ft fully automatic infeed conveyor, heating tunnel, and a Fortress 200 PSI, 27-gallon air compressor with air supplies. The system is wired as found. Buyer should verify site electrical, air, and installation requirements.
The LA-6000CS includes automatic sealing controls, adjustable conveyor speed, production counting, pack measurement, and programmable operating settings.
Included with sale
- Alpha Pack LA-6000CS shrink wrap machine
- TLA-1245 system

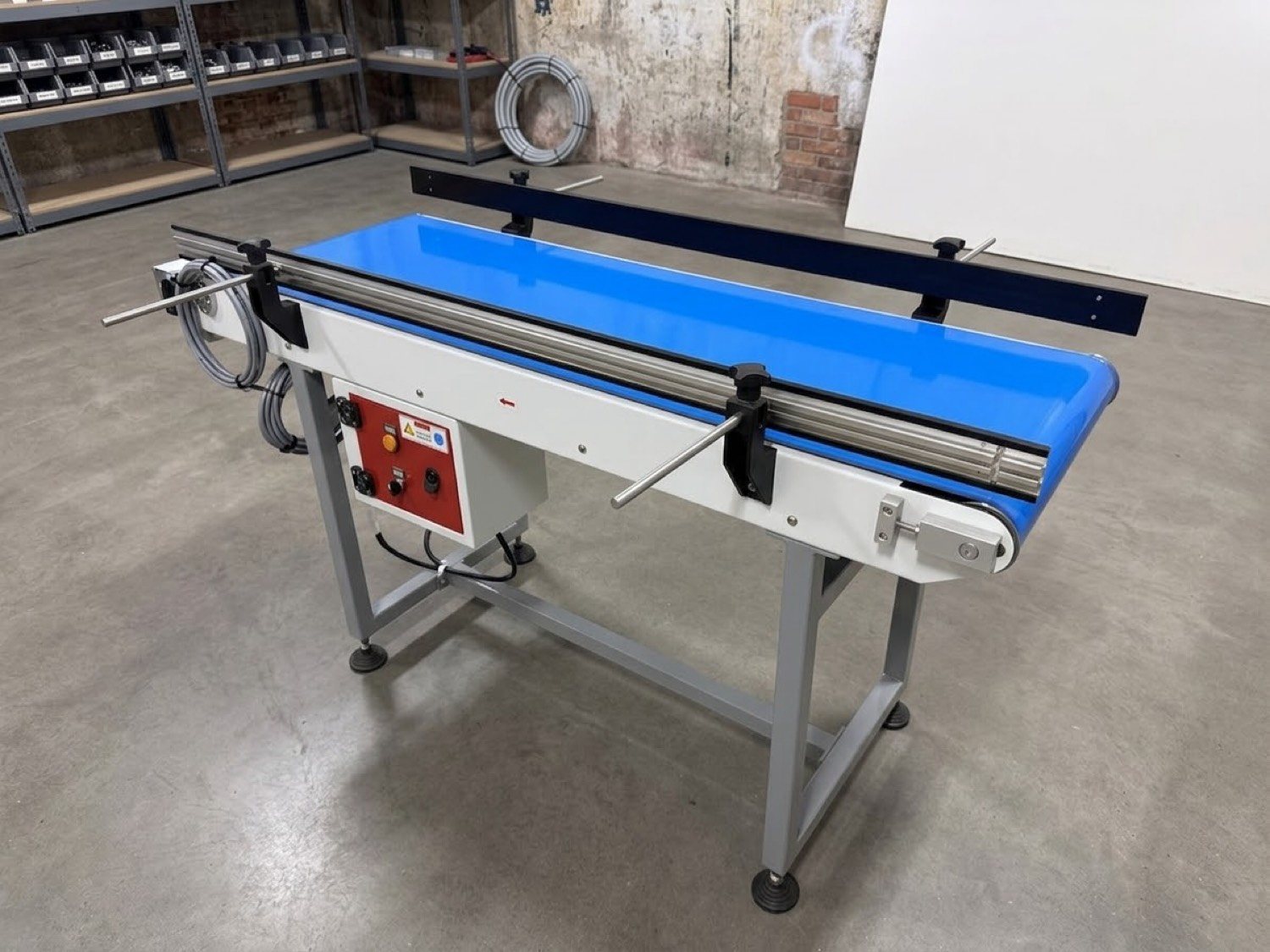

- 6 ft fully automatic infeed conveyor

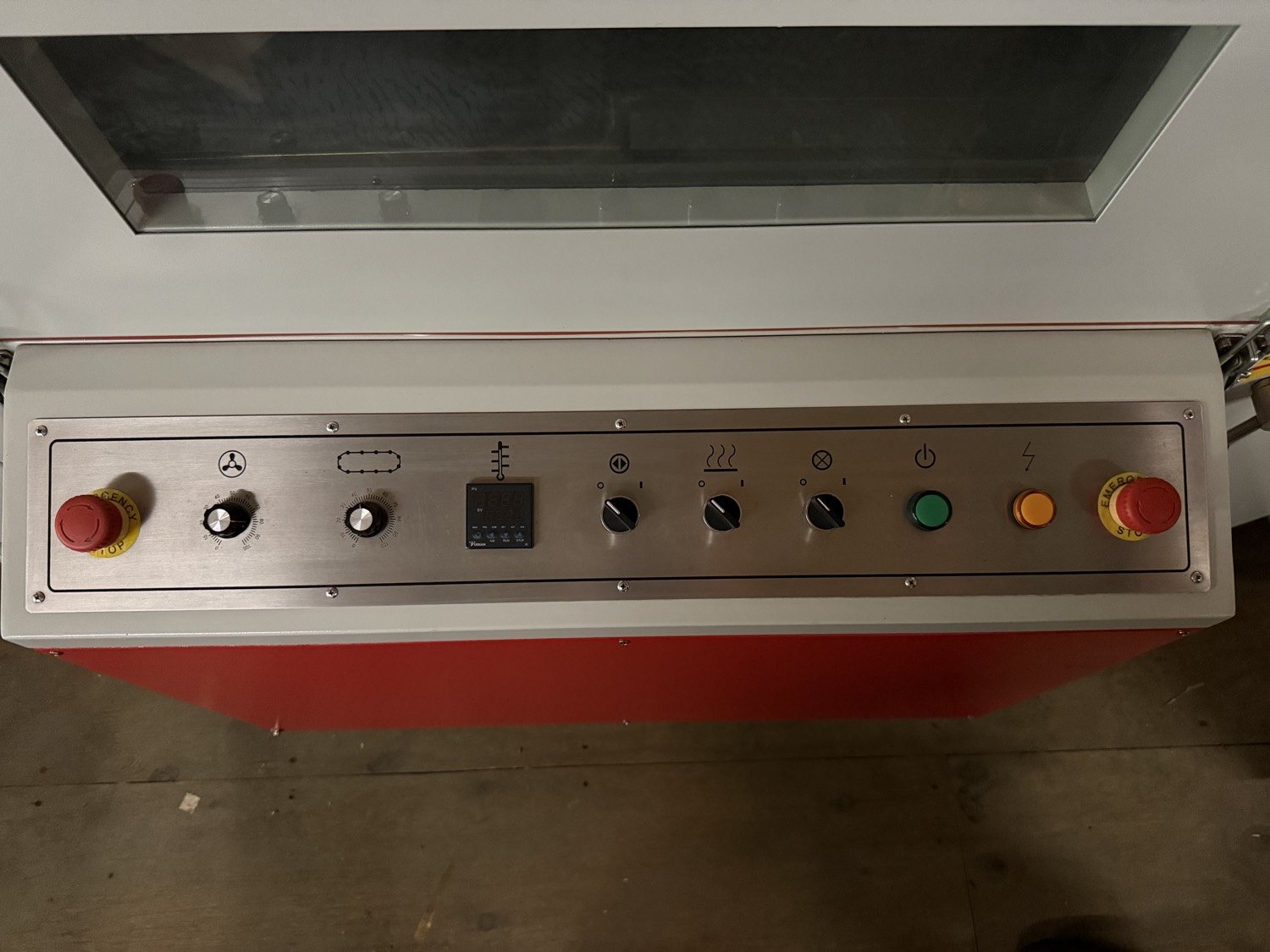

- Heating tunnel

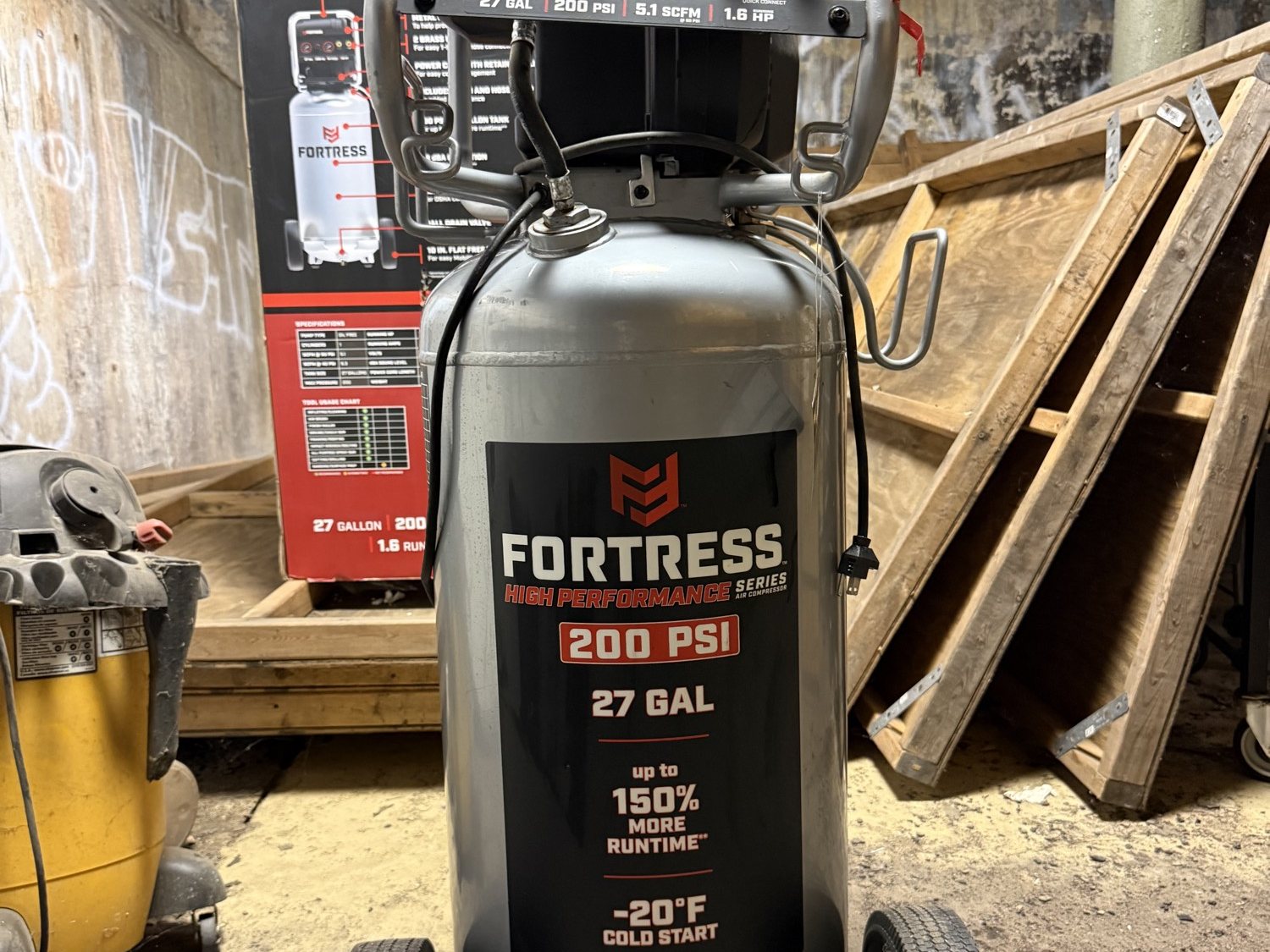

- Fortress air compressor, 200 PSI, 27 gallon
- Air supply components
- Existing wiring and setup
Features
- Motorized center-seal system
- Piece counter
- Batch production setting
- Automatic measurement of pack length
- Real-time production output
- Control for irregular packs
- Reduced power consumption
- CE-compliant design
- Storage for up to 10 operating programs
- Automatic sealing-bar height adjustment
- Dual sealing-blade temperature adjustment
- Electronically adjustable conveyor speed from the control panel
- Automatic infeed operation
- Integrated heating tunnel
Technical specifications
- Manufacturer
- Alpha Pack
- Model
- LA-6000CS / TLA-1245
- Year
- 2019
- Serial
- 190682
- Power supply
- 220V / 1 phase / 50 Hz
- Power consumption
- 3,200 W
- Air supply
- 6 bar / 90 L/min
- Sealing bar
- 610 × 480 mm
- Maximum pack height
- 200 mm
- Conveyor speed
- Up to 30 m/min
- Average output
- Approximately 45 packs per minute
- Center seal
- Yes
- Overall size
- 2,040 × 1,550 × 1,650 mm
- Machine weight
- Approximately 610 to 780 kg
Configuration
This sale is the complete packaging setup: shrink wrap machine, heating tunnel, automatic infeed conveyor, and air compressor. It is sold as one integrated lot, not as a standalone wrapper.
Condition
Used, in really good condition. Condition, operating status, cosmetics, and any known defects should be confirmed by inspection before purchase. Review the photographs, specifications, and available documentation, and arrange an inspection when you can.
Buyer inspection
Inspection is available by appointment. Serious buyers may request additional photographs, operating video, specifications, or other available documentation.
Shipping / removal
Buyer is responsible for transportation, loading, rigging, shipping, and removal unless otherwise agreed in writing. Because of the size and weight, buyers should verify access, electrical, loading, and installation before purchase. A forklift is available.
Important buyer information
Specifications are based on available manufacturer and equipment information and should be independently verified. Buyer is responsible for confirming that electrical, pneumatic, physical, production, and installation requirements fit the intended use. Equipment is sold as-is unless otherwise agreed in writing. Equipment stays in place until the buyer removes it.
Contact
For photographs, video, inspection, or an offer, write sales@equipmentrelay.com. Reference EQ-0101.
